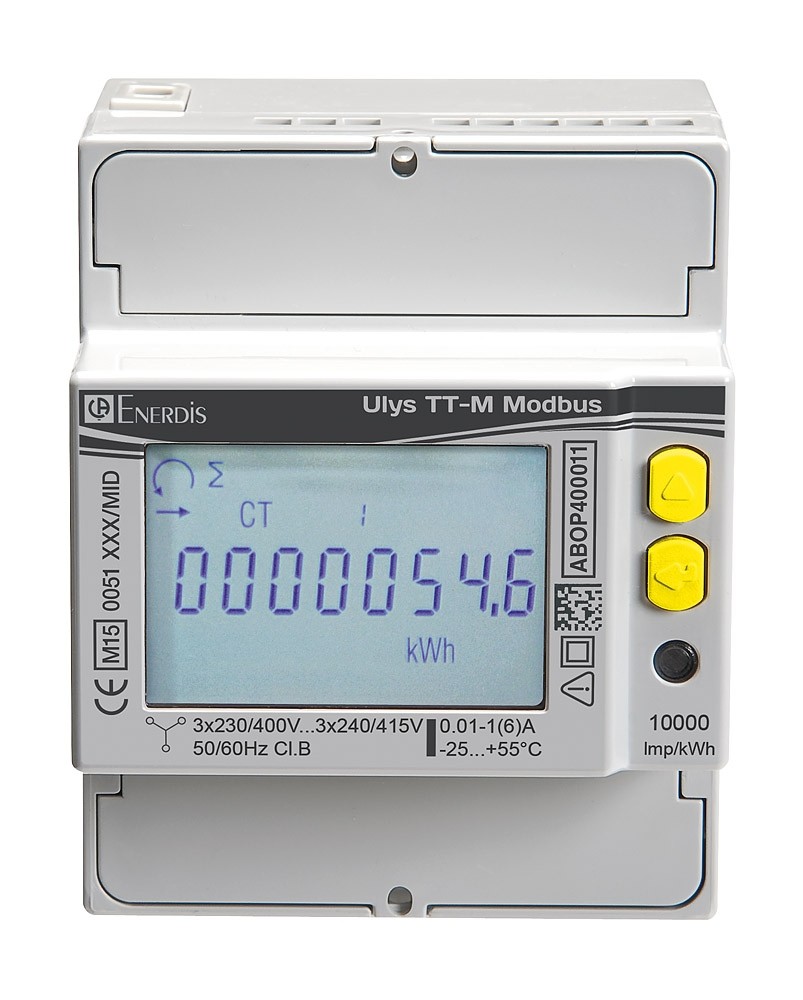

Designed for energy management applications with electricity rebilling on a private distribution network (MID certification mandatory) and usable locally with its screen or remotely via its built-in communication, the ULYS TT-M Modbus meter offers the following features:
- Current inputs on 1/5A secondary CT in 4 DIN modules (4-wire mounting)
- Multi-measurement:
- Total and partial cumulated energy indices according to tariff
- Values of V, U, I, PF and F on screen or remotely via communication (per phase/total)
- Tariff-change input (double tariff)
- Pulse output configurable as P, Q or S
- Connection error indicator and control loop for the parameter settings of the CTs
- Customization of meter display according to the user profile (operator or expert)
- Built-in Modbus RS485 communication
- Lead-sealable terminal covers
The built-in RS485 communication provides a direct interface between these meters and our Elog datalogger supervised by the E.ONLINE energy management software or with any third-party system (e.g. PLC, TBM, CTM, etc.)
