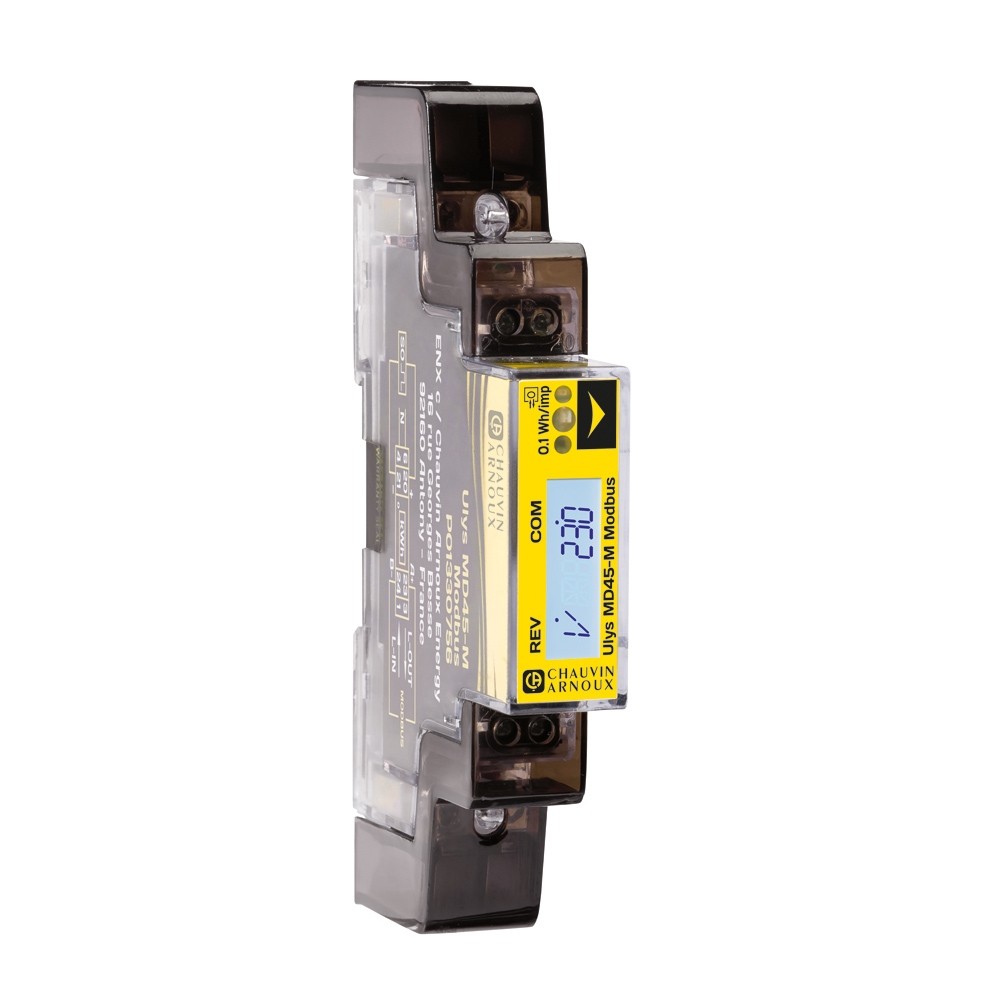

ULYS MD45-M Modbus

ULYS MD45-M Modbus
Highlights

.  Integrated RS485 Modbus communication in one DIN module

·  MID-certified - Accuracy class B

.  Bidirectional metering - Consumption/generation

·  Parameterizable total meter

.  Partial metering

·  Display of all the instantaneous electrical quantities

.  Navigation and parameter settings on front panel with touch-sensitive keys

·  Pulse output with configurable weight

Description

ULYS MD45-M Modbus is dedicated to measurement and rebilling of energy consumption on single-phase 230 Vac networks up to 45A.
Compliant with the EN 50470-1 standard and MID-certified, it is particularly suitable for uses linked to camping sites, marinas, holiday rentals and datacenters, as well as in industry.
Its compact dimensions (1 DIN module) make it easy to install in an electrical control box or an energy supplier's outdoor junction box.
Its pulse output can be connected to a data concentrator such as ELOG for remote data retrieval with a PC, using consumption supervision software such as E.ONLINE.

ULYS MD45-M Modbus displays a large amount of information:

  • Instantaneous electrical quantities: V - I - F - PF - P - Q - S
  • The total active and reactive energy indices according to the flow direction
  • The parameterizable total active energy index: total generated, total consumed, balance, etc.
  • The partial energy consumption index

Its simplified display gives an instantaneous view of the main quantities on its backlit LCD screen and all the other quantities can also be displayed (in particular, using the touch sensitive keys on the front panel or the optical head for configuration).

Main specifications:

  • Operating voltage: 195-253 VAC
  • Rated current: 45 A
  • Inrush current: 20 mA
  • Minimum current: 250 mA
  • Operating frequency: 50Hz ±10%
  • Metrological LED: 10,000 pulses/kWh
  • Pulse output weight: 1,000 pulses/kWh (parameterizable)
  • Communication protocol: Modbus RTU
  • Configurable communication speed and parity: 9600 bd/s -  no parity
Designation
Price
Reference
Quantity
Actions
COMPTEUR ULYS MD45-M MODBUS
-
P01330756
-
