Ulys MCM is an innovative solution for centralizing the measurement of multiple electrical feeders:
Compact: Ulys MCM offers the functions of 18 three-phase electricity meters in a single product whose volume is equivalent to two meters. These compact dimensions mean it is easy to integrate in new or existing electrical cabinets, without having to reorganize the space or add an external electrical control box.
Compatible with all power values: Ulys MCM measures current via a wide range of current sensors which are easy to install on any conductor: wires, cables, multi-cables, copper bars. The sensors can be opened so that they can be set up without disconnecting the power and are of a suitable size: five 333mV current transformer models and two flexible Rogowski-coil sensor models.
Quick wiring: Ulys MCM allows you to set up your current measurement in just a few minutes by using RJ12 quick connectors. All the elements in the measurement line are clip-on, from the product to the current sensors.
Easy to integrate: Ulys MCM makes available all the electrical measurement and metering data (V, U, I, F, PF, Unbalance, P, Q, S, D, Ea, Eq, Es, etc.) for all the channels, i.e. more than 2,000 variables. The product is accessible via modbus on two protocols (Ethernet or RS485): it is a single product to be stored to deal with all the communication constraints in the field.
Ulys MCM is available in versions with 9 or 18 three-phase measurement channels.
Ulys MCM can be equipped with a screen:

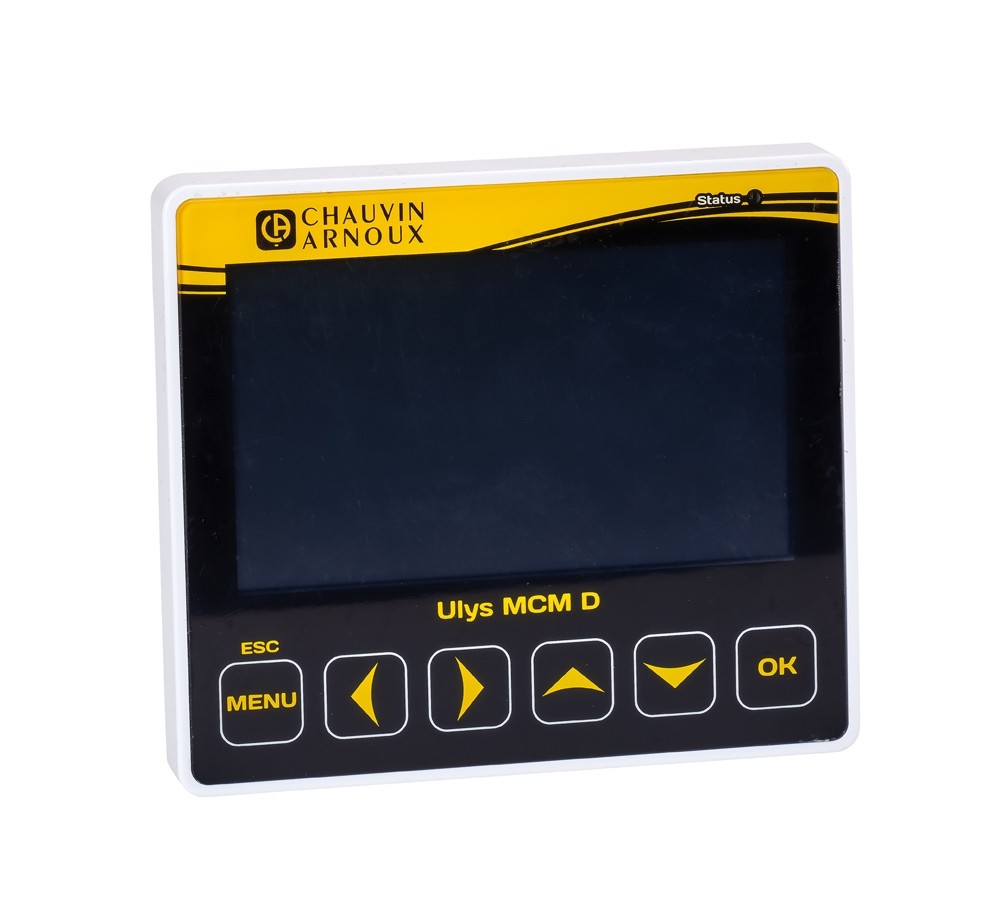

Ulys MCM D: The Ulys MCM D is the remote screen for connection to Ulys MCM. It can be used to display all the data from the Ulys MCM's 18 channels (the electrical data will be grouped by electrical feeder or type of electrical quantity).
Its round barrel means it can be mounted and fastened on the front door of an electrical control box or cabinet.
It can be connected directly to the Ulys MCM by means of an RJ45 cable and does not require any specific wiring for its power supply.
You can see details of the compatible current sensors and accessories by clicking here.
