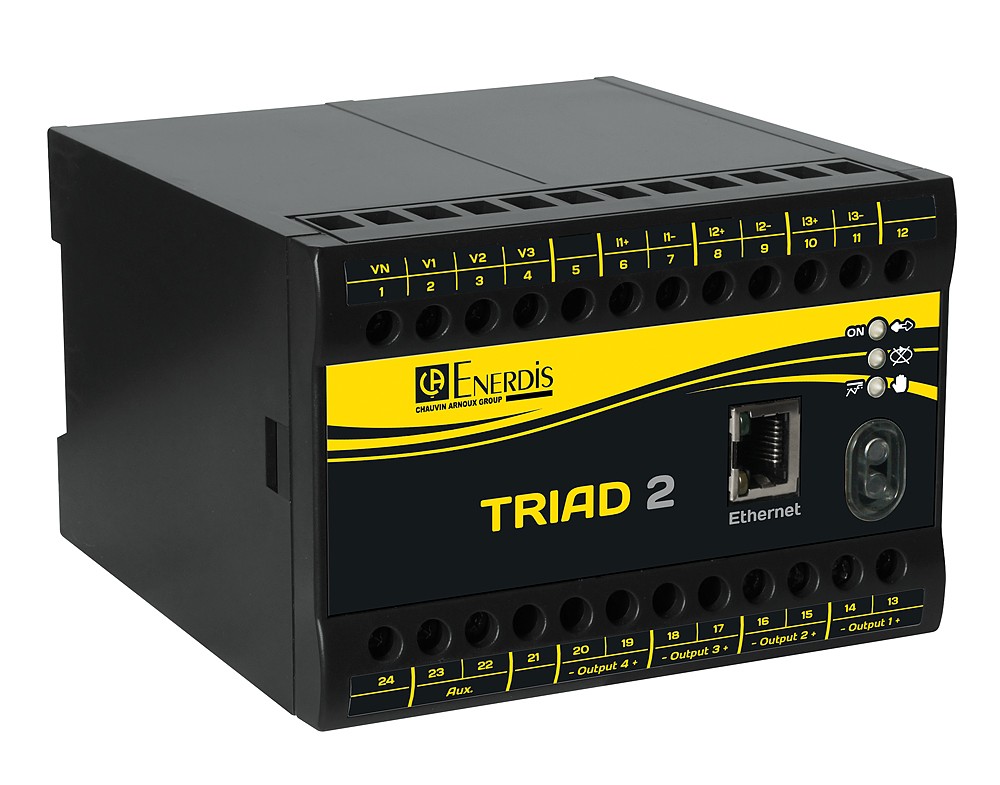

TRIAD2 CFG

Highlights
  • 4 kV isolation
  • Configurable and modifiable with the TRIADJUST 2 software
  • Adjustable accuracy in Class 0.1 as per IEC 60688
  • Response time down to 50 ms
Description

Multi-function digital transducer with 1 to 4 analog outputs for single-phase, split-phase and 3 or 4-wire balanced or unbalanced three-phase networks

  • Measured quantities: Vac, Uac, Iac, P, Q, S, F, PF, phi, Cos phi, Tan phi, phiU, phiV

  • Accuracy: Class 0.1

  • Voltage inputs: 480 (ph-ph)
      1 MV (ph-ph) max. measured primary voltage

  • Current input: 1 A and 5 A
      40,000 A max. measured primary current

  • Ranges of analog outputs: ± 1 mA, ± 5 mA, ± 20 mA, ± 1V, ± 10V

  • Transfer curves: linear, 2 slopes and quadratic

  • Response time: 50 ms

  • Auxiliary source: 80-265 Vac/dc ou 19-58 Vdc

  • Operating frequency: 50 or 60 Hz

  • Communication protocol:

    ModBus in RTU mode (optical head)
    ModBus/JBUS in RTU mode (RS485)
    ModBus/TCP in RTU mode (Ethernet)

    Totally configurable with the TRIADJUST2 software

  • Reference standard: IEC 60688
      IEC 61010-1
      IEC 61326-1
      IEC 61000-6-5

Designation
Price
Reference
Quantity
Actions
CONVERTISSEUR PROGRAMM. TRIAD2 CONFIGURE
-
TRIAD2-CFG
-
