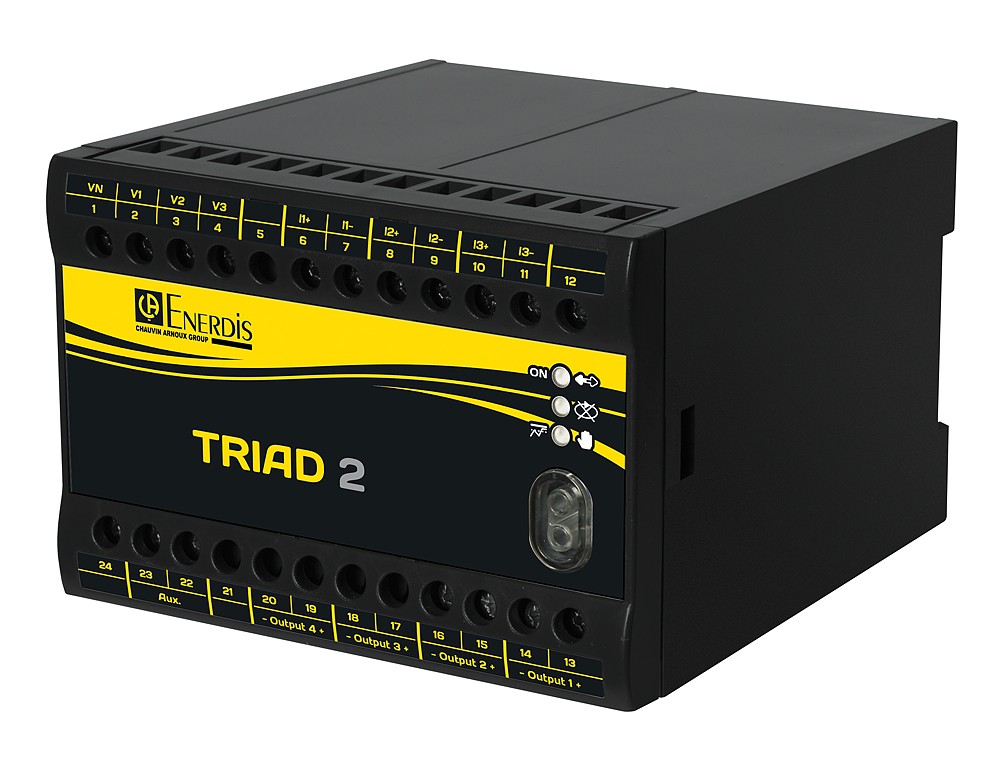

Multi-function digital transducer with 2 analog outputs for single-phase, split-phase and 3 or 4-wire balanced or unbalanced three-phase networks
-
Measured quantities: Vac, Uac, Iac, P, Q, S, F, PF, phi, Cos phi, Tan phi, phiU, phiV
-
Accuracy: Class 0.1
-
Voltage inputs: 480 (ph-ph)
1 MV (ph-ph) max. measured primary voltage
-
Current input: 1 A and 5 A
40,000 A max. measured primary current
-
Ranges of analog outputs: ± 20 mA, ± 10V
-
Transfer curves: linear, 2 slopes and quadratic
-
Response time: 50 ms
-
Auxiliary source: 19 to 58 Vdc
-
Operating frequency: 50 or 60 Hz
-
Communication protocol:
ModBus in RTU mode (optical head)
ModBus/JBUS in RTU mode (RS485)
ModBus/TCP in RTU mode (Ethernet)
Totally configurable with the TRIADJUST2 software
-
Reference standard: IEC 60688
IEC 61010-1
IEC 61326-1
IEC 61000-6-5
