SERIE OK

Highlights
  • Plug-in relays with 4 instantaneous contacts, 10 A
  • Solid and rugged construction for intensive duty
  • Excellent shock and vibration resistance
  • Ample clearance between open contact elements, 5 kV insulation
  • Mechanical life expectancy of 100,000,000 operations
  • Transparent cover, pull-out handle
  • Wide variety of configurations and customizations
  • Wide range of sockets
Description

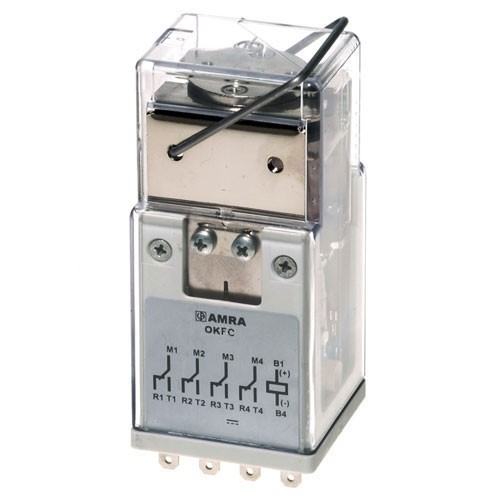

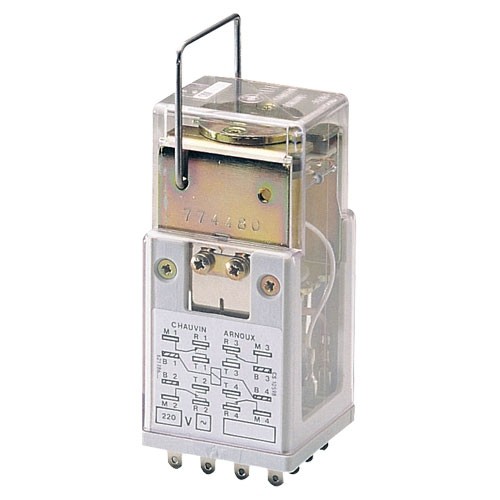

OK series plug-in relays (4 changeover contacts) are designed and built with materials and solutions that impart excellent characteristics of endurance and ruggedness:

- Suitable for use in harsh operating environments and when subject to strong thermal shocks. Above all, these relays can be used in seismic environments thanks to their excellent resistance to shock and vibration.

The excellent electrical and mechanical performance of these relays allows them to be used in the most demanding sectors, such as:

- Control and signalling functions in electricity generating stations

- Electrical transformer stations, rail transport

- Industries with continuous production processes

Ample contact clearance, exceptional efficiency in breaking DC loads and pulsed 5 kV insulation between open contacts.

Patented operating mechanism: mechanical life expectancy > 100,000,000 operations.

The contacts are mounted on individual and independent blades, deigned to assure unparalleled pressure values on the make and break contacts, in the region of 0.8…1N. Sliding and self-cleaning contact.

Compliance with standards
  • EN 61810-1, EN 61810-2, EN 61810-7 Electromechanical elementary relays
  • EN 60695-2-10 Fire hazard testing
  • EN 50082-2 Electromagnetic compatibility
  • EN 60529 Degrees of protection provided by enclosures
