MEMO4 Modbus

MEMO4 Modbus
  • RS485
Highlights

Built-in RS485 Modbus communication in one DIN module

MID certification - Accuracy class B

Partial metering - Consumption/production

Display of all the instantaneous electrical quantities

Pulse output with adjustable pulse weight

Description

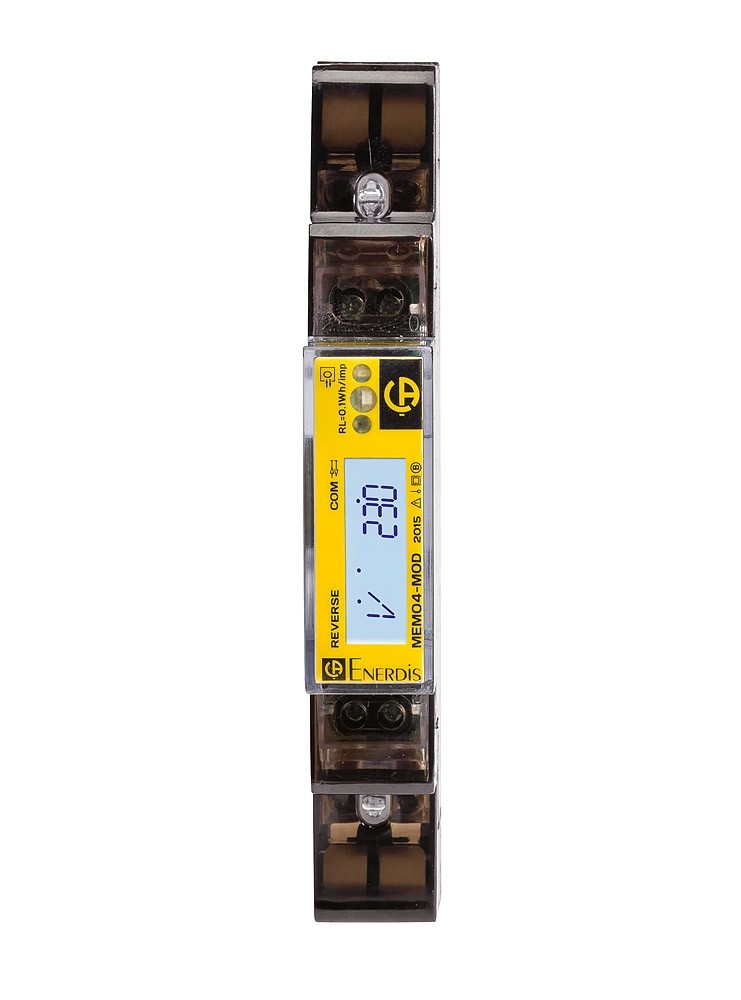

MEMO4-MODBUS is dedicated to energy measurement and monitoring on 23 Vac single-phase networks up to 45 A.
Compliant with the EN 6153-21 metering standard, it is particularly suitable for uses linked to camping and caravan sites, marinas, seasonal rentals, da  ta centers and industry.
Its compact size (1 DIN module) makes it easy to set up in an electrical control box or an electricity supplier's outdoor connection box.
Its pulse output and its built-in RS485 Modbus communication mean that it can be connected to a data logger such as ELOG for remote retrieval of consumption data on a PC, using communication monitoring software such as E.ONLINE.

MEMO4-MODBUS provides a large amount of information on its display:

  • Instantaneous electrical quantities: V - I - F - PF - P - Q - S
  • The active, reactive and apparent energy indices according to the direction of the energy flow
  • The partial energy consumption index

Its simplified display allows you to check the main quantities at a glance on its backlit LCD screen.

It is nevertheless possible at any time to display all or some of the other electrical quantities for advanced use (in particular by means of the optical head for quick configuration).

Main specifications:

  • Operating voltage: 195-253 VAC
  • Rated current: 45 A
  • Minimum current: 25 mA
  • Operating frequency: 5Hz ±1%
  • Metrological LED: 1, pulses/kWh
  • Pulse output weight: 1, pulses/kWh (adjustable)
  • Communication protocol: Modbus RTU
  • Communication speed: 9,6 bd/s (adjustable)
Designation
Price
Reference
Quantity
Actions
COMPTEUR D ENERGIE MEMO4-MODBUS
-
P01330752
-
