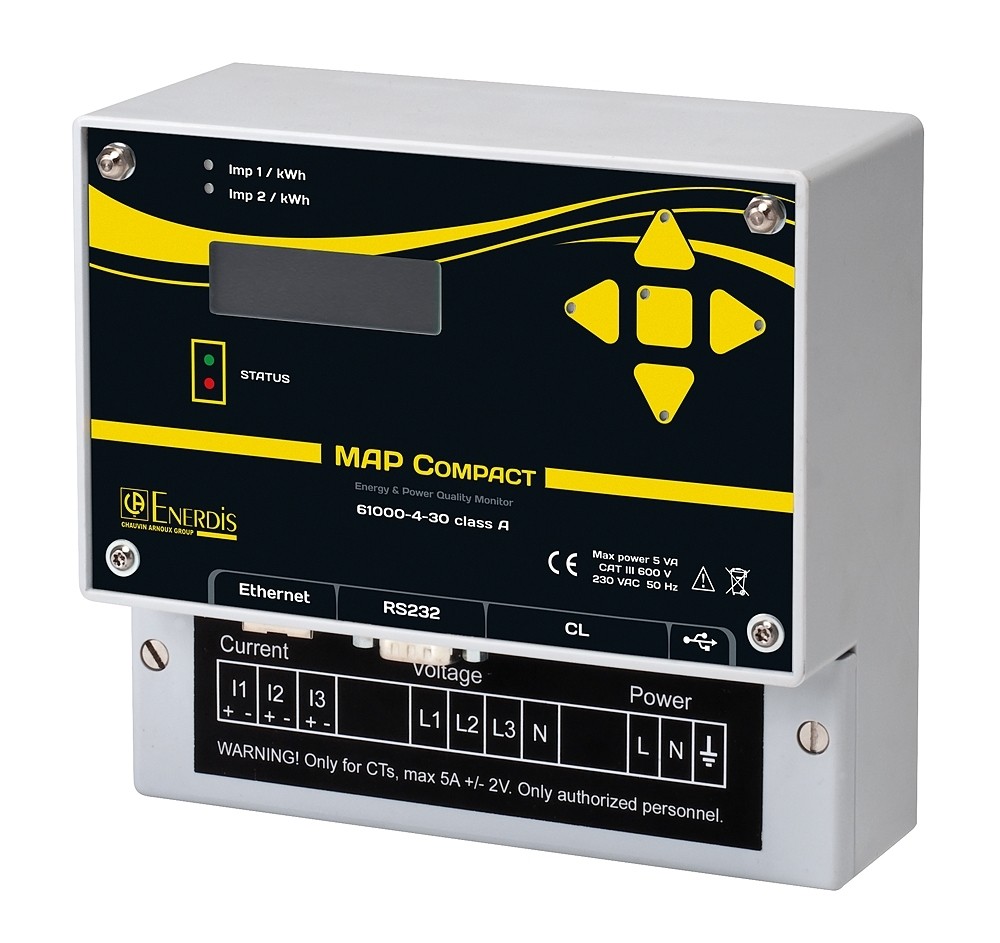

MAP Compact

Highlights
  • Class A in compliance with the EN 61000-4-30 standard
  • Integrated EN 50160 reports
  • Display
  • Compact
Description
  • Harmonics up to the 50th order
  • Lfl, Pst and Plt flicker
  • Main functions:
    • Built-in display
      Measurement compliant with IEC 61000-4-30 Class A
      Integrated EN50160 report generation
      Recording of dips / overvoltages / outages
      Waveform capture with programmable pre-time and post-time
      Measurement of power and energy values as primary quantities
      Communication interfaces
      Compact format for installation in existing cabinets
      Configuration and display software; Qual-SRTc, Qual-View
      Management and analysis software: E.Qual-Premium Server
    Main specifications:
    • Voltage input: 3 channels: 0-364/0-630 VRMS
    • Current input: 4 channels, 0-6 A RMS
    • Auxiliary power supply: 175-255 Vac (10s power reserve)
    • Communication: RS232 / Current loop / Ethernet port / Mini USB
    • Dimensions (L x H x W) in mm: 155 x 165 x 68
    Other specifications: see technical datasheet in catalogue
    Designation
    Price
    Reference
    Quantity
    Actions
    MAP COMPACT PACKAGE
    -
    P01340010
    -
    MAP COMPACT ETH PACKAGE
    -
    P01340020
    -
