E.Qual - Premium

Highlights
  • Targeted ARBITRATION of power delivery or supply quality
  • COMPLETE: from examination of the waveform to global interpretation of the data
  • INTUITIVE:Centralized management of a fleet of Class A IEC 61000-4-30 network analyzers accessible to all
Description


E.Qual-Premium Server is the unique, user-friendly solution for managing a fleet of network analyzers comprising ten to several hundred products.

Management of a fleet of network analyzers accessible to everyone:

- Quickly identify problematic points in the network via a geographical organization and intuitive sorting systems

- Manage the relations to the network connection points by producing clear, incontestable disturbance reports from IEC 61000-4-30 Class A analyzers

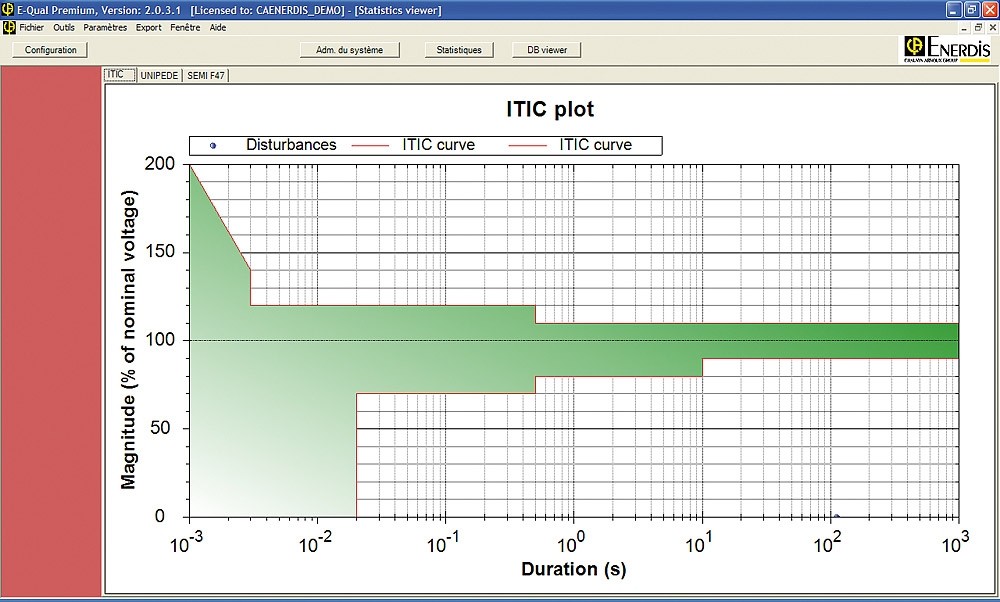

- Effectively identify disturbances which may harm your application using acknowledged professional analytical tools (Industries: SEMI F47 profile, IT rooms: ITIC profile, etc.)

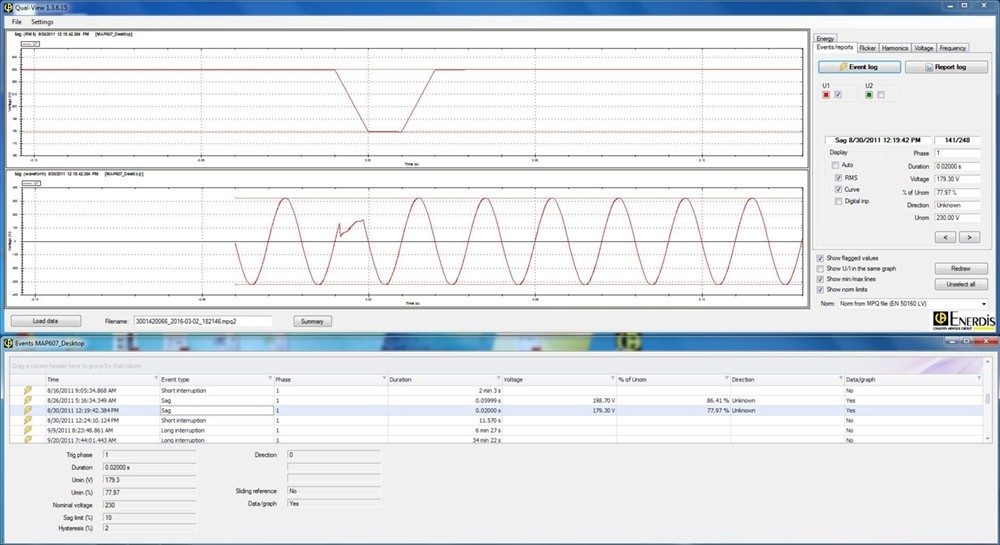

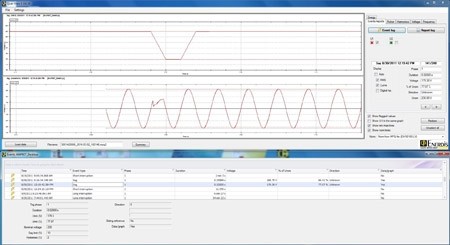

- Expert analysis tools to enable operators to search on each event for the origins of phenomena up to 2 MHz, with email alerts sent by the system

- An offering of portable instruments to complete your analyses of measurement campaigns and occasional troubleshooting, compatible on the same system

E.Qual-Premium Server includes a database which stores all the data retrieved from the equipment, enabling you to back up the entire history of your electrical network.

Qual Web module: All the information from your qualimetry database in your web browser!
The Qual Web module is an additional module allow you to view a selection of the information recorded by your fleet of analyzers, without having to install any software or application. Create simplified profiles for your colleagues and/or customers with one click!




E.Qual-Premium is the ideal solution for managing energy supply quality on the feeds to your installation:

-  Pre- and post-recording before and after the event per second and at the scale of the waveform

-  Capture of fast transients up to 2 MHz

-  Possibility of recovering the homopolar voltage and displaying it in the software like any other parameter (which can be used to assess potential faults on the protective devices)

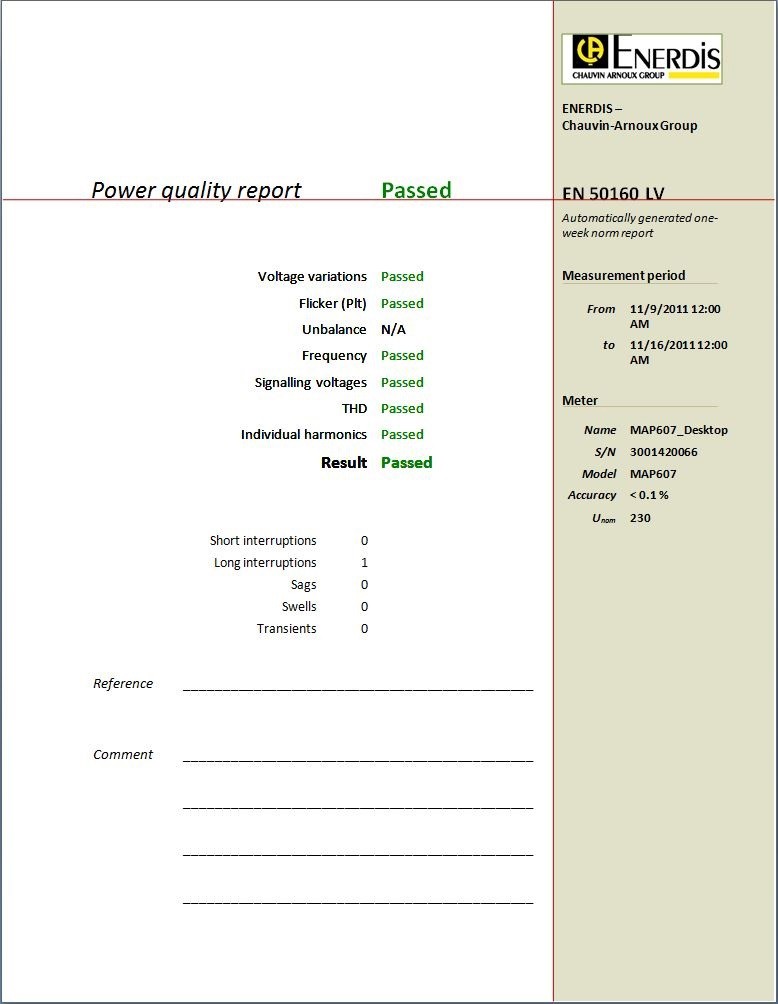

-  Possibility of extracting network disturbance reports (EN50160 conformity reports and overview of voltage events) which can be personalized with the customer's name

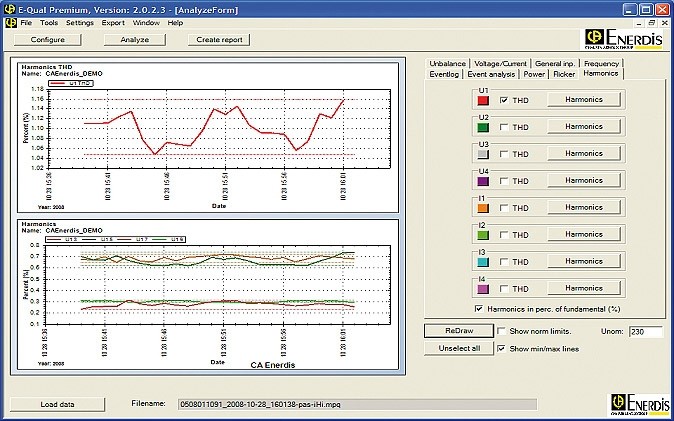

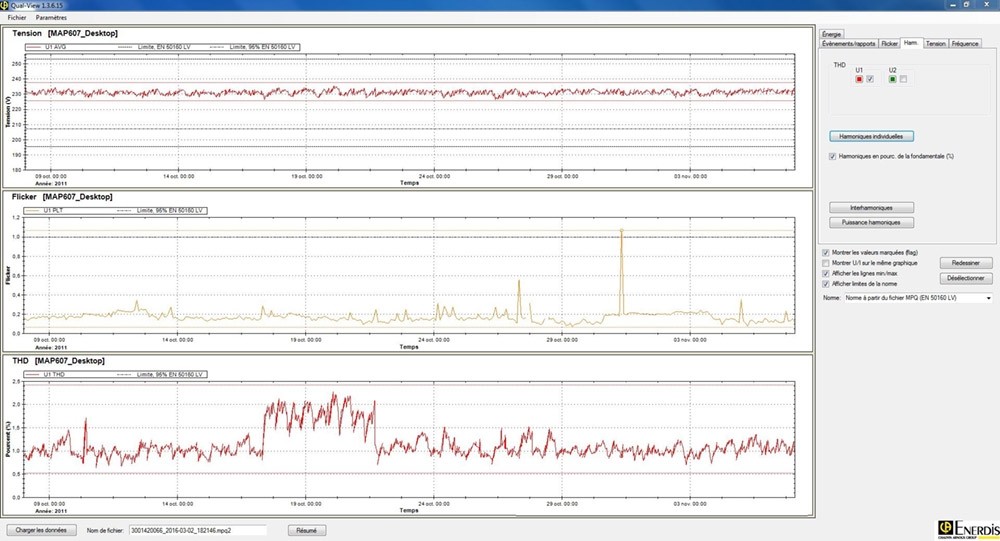

-  Network analysis: V, U, I, P, harmonics and flicker, with the possibility of viewing all the long-terms trends of these parameters 24/7

E.Qual-Premium makes it easy to access your analyzers in point-to-point configurations and enables you to recover the measurement campaign files from the equipment. You can then save these files on your computer to transfer or view them at any time.




Other specifications: see datasheet in catalog (example of product supervision architecture)
Designation
Price
Reference
Quantity
Actions
E.QUAL PREMIUM
-
P01340120
-
E.QUAL PREMIUM SERVER
-
P01340122
-
E.QUAL PREMIUM SERVER5
-
P01340123
-
E.QUAL SYNC
-
P01340128
-
